Pannello sandwich in camera pulita realizzato a macchina

Huaao Fireproof Heat Preservation Sound Insulation Rock Wool Sandwich Panel Wall Roof Sheet Metal Clean Room Panels

Tutte le categorie

Pannello sandwich in camera pulita realizzato a macchina

Pannello sandwich in camera pulita fatto a mano

Porta a dondolo della stanza pulita

Porta scorrevole automatica della stanza pulita

finestra del locale senza polvere

Profilo di alluminio in camera pulita

Pavimenti in PVC in camera pulita

Scatola di passaggio del locale senza polvere

Cascata di particelle del locale senza polvere

Cassa filtro Hepa in camera pulita

Unità di filtraggio del fan di FFU

Filtro dell'aria del locale senza polvere

Porta a chiusura a rotazione rapida

Attrezzature del locale senza polvere

Contattaci

Mr. Jack

chenjinglin@gd-hao.com

+8618379778096

Contatta ora

Huaao Fireproof Heat Preservation Sound Insulation Rock Wool Sandwich Panel Wall Roof Sheet Metal Clean Room Panels

Marchio:	HUAAO
Numero modello:	HE003
MOQ:	100㎡
Prezzo:	US$8-9.2/㎡
Dettagli dell' imballaggio:	1. Protezione in schiuma 2. Supporto telaio in legno 3. Caricamento del carrello elevatore e scarico
Condizioni di pagamento:	L/c, t/t, d/a, d/p, t/t

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Foshan Guangdong China

Certificazione:

CE/ISO/Fireproof/ISO/UL

Materiale del foglio del pannello:

Acciaio zincato

Nome prodotto:

Pannello sandwich MgO/Rockwool/silice/PU/schiuma

Tipo:

Pannello malato

Spessore del foglio del pannello:

0,376; 0,426; 0,476; 0,526 mm

Spessore del pannello:

50 mm, 75 mm, 100 mm.

Larghezza:

980 mm, 1180 mm

Lunghezza:

Personalizzato

Materiale core:

Pannello sandwich MgO/Rockwool/silice/PU/schiuma

Colore:

Personalizzato

Stoccaggio:

Esaurito

Descrizione:

Resistenza agli urti GMP pannello sandwich Mgso pannello murario sala pulita per fabbrica alimentare

Capacità di alimentazione:

4000 metri quadrati/giorno

Evidenziare:

fireproof rock wool sandwich panel

sound insulation clean room panel

heat preservation metal roof sheet

Descrizione del prodotto

Huaao Easy Installation Insulated EPS Sandwich Panels Fireproof Steel Panels for Freezer Room Exterior Wall and Roof Application

This product is a rock wool core sandwich panel with sheet metal facings, designed for use in construction walls and roofs. Its key selling points are its superior fire safety (A1 rating), effective sound insulation, and good thermal performance. It is also marketed for use in cleanrooms, which requires a high-quality installation to be effective.

Critical Conclusions:

"Fireproof" is a Valid Claim: Unlike panels with plastic-based cores (EPS, PU, PIR), rock wool is truly non-combustible. This is its single biggest advantage and makes it a mandatory choice in many high-safety applications.
Ideal for Noisy and High-Risk Areas: The combination of fireproofing and sound insulation makes these panels perfect for industrial plants, power stations, factories, and other facilities where both safety and noise control are priorities.
"Clean Room" Application is Conditional: The steel-faced panels provide a suitable smooth, non-shedding surface. However, achieving a true cleanroom environment depends entirely on the installation quality—ensuring all seams, doors, and windows are hermetically sealed.
Omitted Specification: The description lacks the official fire rating certificate (e.g., EN 13501-1 Class A1) and the thermal conductivity (Lambda value - λ), which are essential for professional evaluation.

Product Specifications

Attribute	Value
Panel Sheet Material	Galvanized steel
Product Name	MGO/Rockwool/Silica/PU/Foam sandwich panel
Type	Machine-made panel
Panel Sheet Thickness	0.376; 0.426; 0.476; 0.526 mm
Panel Thickness	50mm, 75mm, 100mm,Customized
Width	950mm ,980mm, 1180mm
Length	Customized
Core Material	MGO/Rockwool/Silica/PU/Foam sandwich panel
Color	Customized

Product Description

GMP impact resistant MGSO sandwich panel is a specialized clean room wall panel solution for food factories and hospital buildings. This innovative panel features a core material made from magnesium sulfate and magnesium oxide using lamination technology, creating an environmentally friendly product with superior performance characteristics.

Key Parameters

Type	Mechanism panel
Width	950mm, 1150mm
Model	HE003
Fire Rating	60min (A1 grade)
Available Colors	Blue, off-white, green

Product Advantages

A1 grade fire rating for superior safety
Premium galvanized steel/stainless steel facing
Exceptional strength and bending resistance
Excellent thermal insulation and soundproofing
Waterproof and moisture-resistant properties
High smoothness surface finish
Lightweight yet durable construction
Environmentally friendly materials

Manufacturing Capabilities

Annual production capacity: 40,000㎡
800 employees across 6 factories
¥1 billion annual sales
World's first automatic production line (6-8x more efficient than traditional methods)
Raw materials sourced from Fortune 500 suppliers

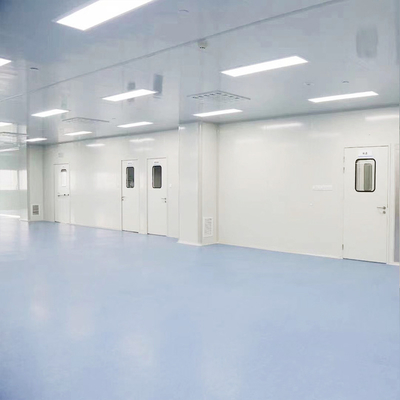

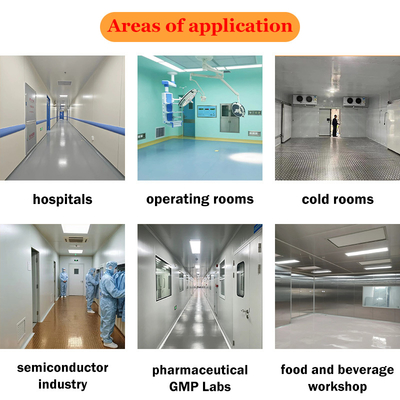

Applications

Ideal for various high-cleanliness environments including:

Hospitals and medical facilities
Pharmaceutical manufacturing
Electronics production
Food and beverage processing
Cosmetics manufacturing
Aerospace facilities
Laboratories and research centers

Note: This panel can be used for both wall and ceiling applications in cleanroom environments.

Project Photos

Company Facility

Frequently Asked Questions

Q: What is your core competitive advantage?

A: We partner with Fortune 500 raw material suppliers and operate the world's first automatic production line, delivering 6-8x greater efficiency than traditional methods. Our 800-employee operation across 6 factories ensures both quality and cost-effectiveness.

Q: Do you provide installation services?

A: While we don't have our own construction team, our panels feature excellent design for easy installation. We provide detailed instructions, installation videos, and can dispatch professional supervisors to your site.

Q: What is your product range?

A: We offer over 100 different products including cleanroom sandwich panels, doors, windows, aluminum profiles, PVC flooring, and specialized cleanroom equipment.

Q: Can I request samples?

A: Yes, we provide free samples. Customers are responsible for freight costs.

Q: What are your payment terms?

A: Standard terms are 30% deposit by T/T with 70% balance before delivery. We're open to discussing alternative arrangements for long-term partnerships.
